PRO-E-DI Series

①Resistivity(25°C):10-16MΩ.cm ② Salt rejection 95-99% (with new RO membrane) ③Conductance:<0.1us/cm
④TDS (RO Water): <10ppm
⑤2 water outlets: RO water, deionized water

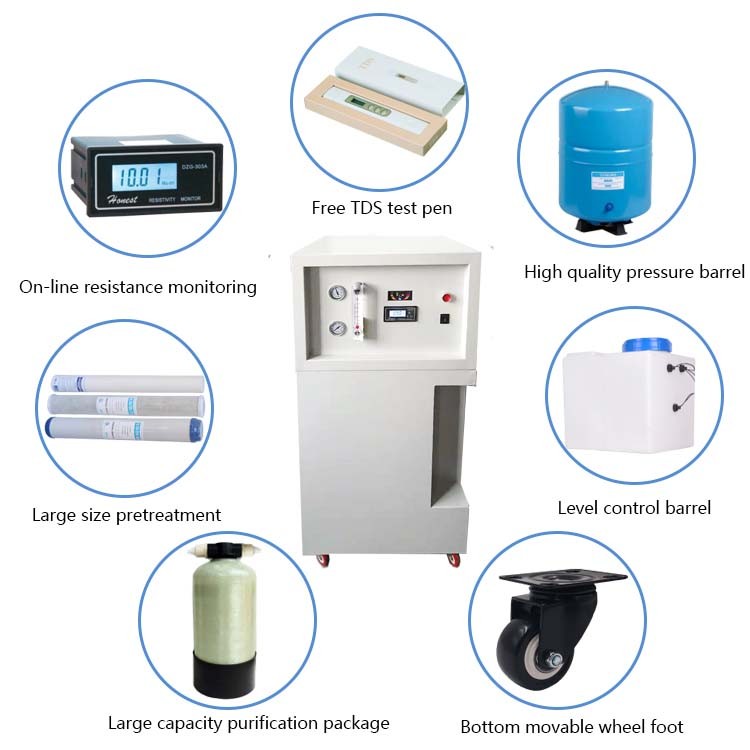

Features

Ø Fully automatic microcomputer controlled display, monitors power, water shortage, water, water full, flush, and strong flush control in real time.

Ø Fully automatic RO membrane anti-scaling and flushing procedures, as well as timed flushing procedures to extend RO membrane life.

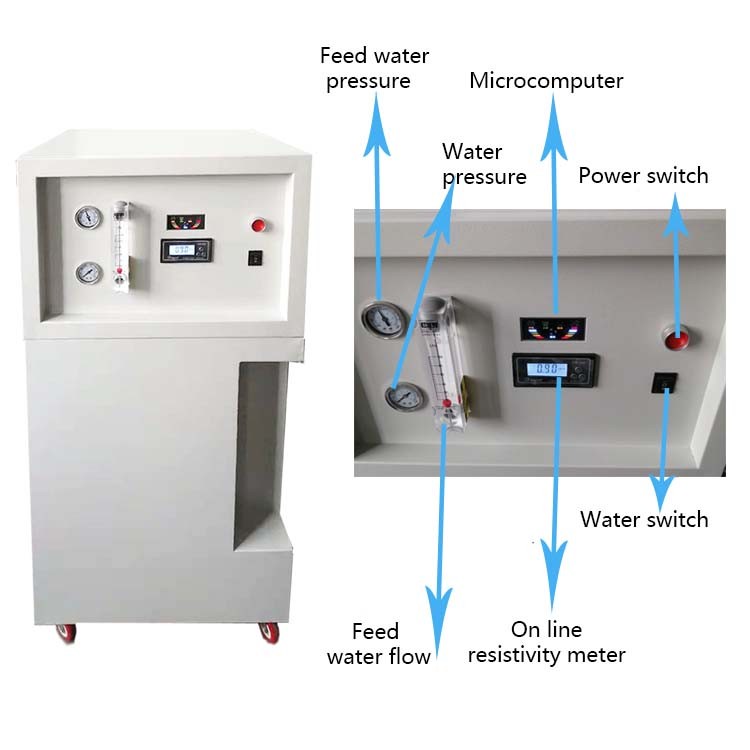

Ø Real-time online influent flow monitoring, influent water pressure monitoring, production water quantity monitoring, production water pressure monitoring.

Ø Water quality online resistivity monitoring, online detection of various working conditions, real-time control of operating data.

Ø The main components are imported brands to ensure excellent water quality and a variety of different configurations to meet your experimental needs.

Ø Floor-standing design with movable and fixed feet at the bottom for easier installation and movement.

Ø RO water, deionized water, two water outlets.

Ø Multiple safety protection, compact chassis and beautiful appearance.

Ø Present the portable TDS water quality test pen.

Ø Configure a large capacity purification tank.

Ø The front of the machine is equipped with a separate water intake end.


Application

Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt


Process



Filter function

² First stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.

² Second stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.

² Third stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.

² The fourth stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.

² The fifth stage: Deionization purification tank: remove most of the heavy metals and trace elements in the water, and the water quality meets the national laboratory water first-grade water standard.


Parameter

Feed water request

TDS <200ppm, 5-45 ℃, 1.0-3.5Kg / cm2

Flow rate

1.5-2 L/Min ( with pressure barrel)

Water making speed

40L/H

2 water outlets

RO water and DI water

RO water quality

TDS <10 ppm * Total salt rejection above 95%

DI water quality

Conductivity

<0.1us/cm (0.01ms/m)

Resistivity

10-16MΩ-cm@25℃

Inorganic ion rejection

>96%

Soluble organic matter rejection

>99% (molecular weight >100)

Particulate matter rejection rate

>99%

Microbial retention rate

>99%

Machine size (L x W x H)

50 × 52 × 108cm

Standard configuration

Machine + 11 gallon pressure tank + accessory package

Power supply

220V 50/60Hz  72-240W


Product consumables list

No

Filter element

Replace cycle

Quantity

1

20’’ PP cotton

About 4-6 month

1 pc

2

20’’ Granular activated carbon

About 4-6 month

1 pc

3

20’’ Refined activated carbon

About 4-6 month

1 pc

4

400 GPD RO membrane

About 1-2 years

              1 pc

5

12L deionization purification tank

About 25 tons

  1 pc
