PRO-S-UP Synthesizing
RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/m,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ml/ul

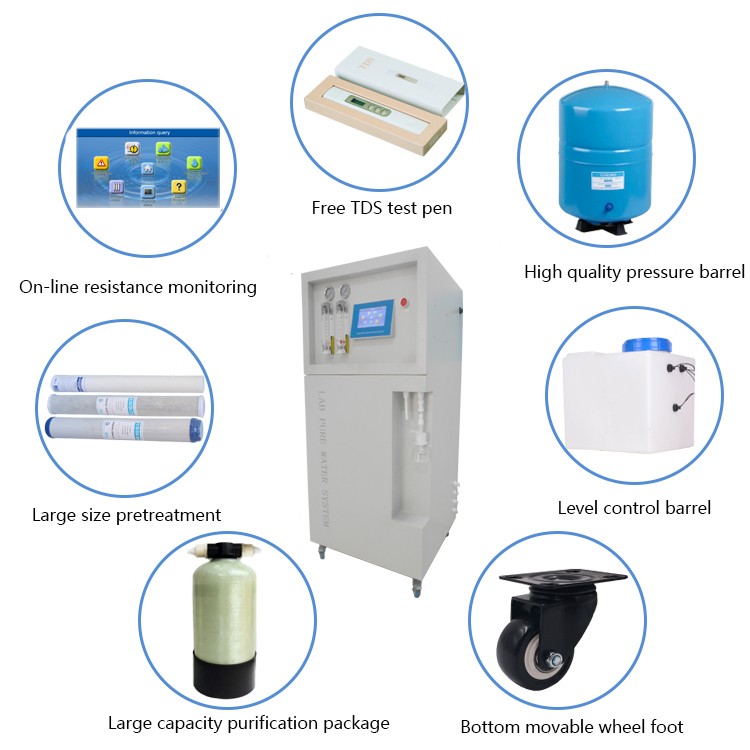

Product Features
Ø Backlight LCD displayer.
Ø Dual water quality online monitoring, display RO water conductivity and UP or DI water resistance at the same time, also show machine operation status.
Ø Menu-type operation, parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.
Ø Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touched key, Automatic indication light indicate RO and UP water intake.
Ø Fully automatic microcomputer control displayer real-time monitor power source, water lack, water making, water fulling, flushing, strong flushing control.
Ø Floor type, with mobile&fixed trundle at the bottom to make installation and moving much more convenient.
Ø 2 water outlets: RO and UP water
Ø Multiple security protection, beautiful and exquisite machine appearance.
Ø With TDS water quality test pen presented
Ø Equipped with large capacity purification tank.
Application
Suitable for molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicology research, drug development, medical testing
Product parameter
Feed water request | TDS <400ppm, 5-45 ℃, 1.0-3.5Kg / cm2 |
Flow rate | 1.5-2 L/Min ( with pressure barrel) |
Water making speed | 40/60/80/100/120 L/H |
Inorganic ion rejection | >96% |
Soluble organic matter rejection | >99% (molecular weight >100) |
Particulate matter rejection rate | >99% |
Microbial retention rate | >99% |
2 water outlets | RO water and UP water |
RO water quality | TDS <10 ppm * Total salt rejection above 95% |
UP water quality | |
Particulate matter (> 0.22μm) | <1/ml |
Resistivity | 18.25MΩ-cm@25℃ ( conductivity<0.05μs/cm) |
Heavy metal ion | <0.1ppb |
TOC | <3ppb |
Pyrogen | <0.00EU/ml |
Microbe | <1 CFU/ml |
RNases | ≤0.01ng/ml |
DNases | ≤3Pg/ul |

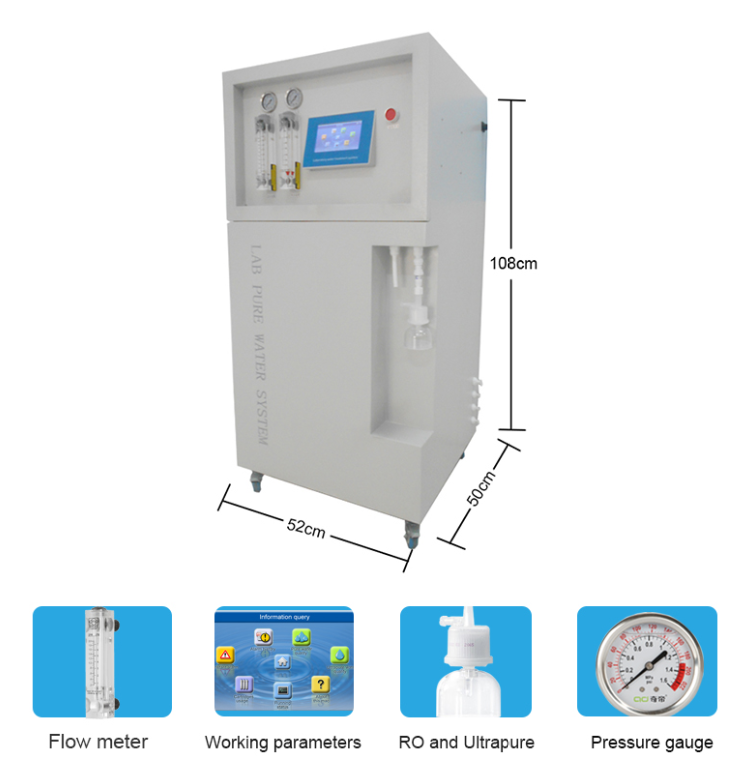

Machine size (L x W x H) | 50 × 52 × 108cm |
Standard configuration | Machine + 11 gallon pressure tank + accessory package |
Process

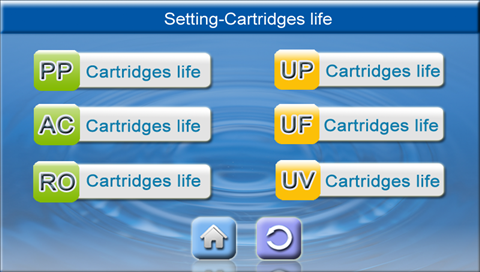

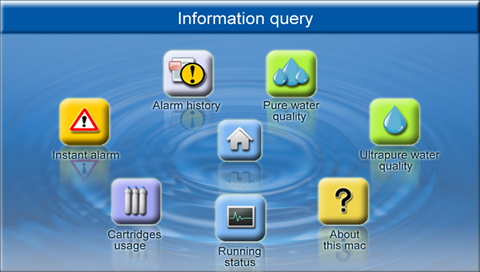

Operation screen display

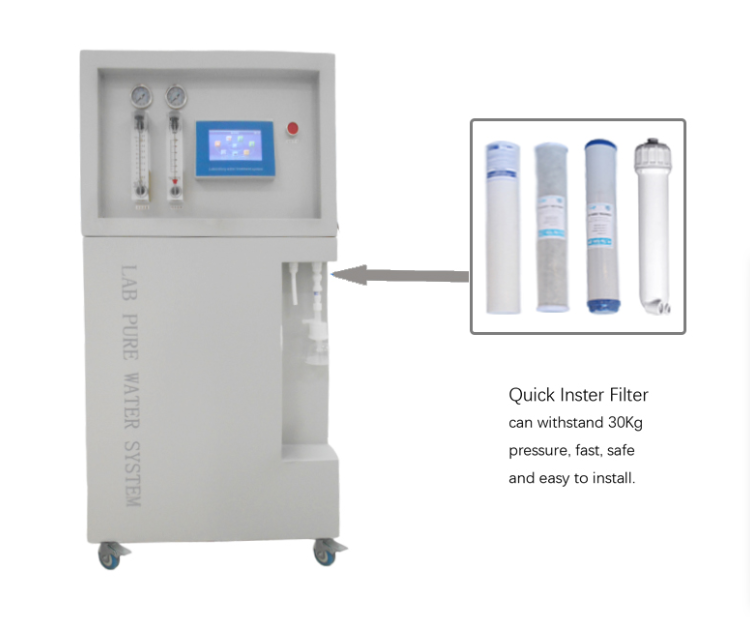

Product consumables list
No | Filter element | Replace cycle | Quantity |
1 | 20’’ 5 μm PP cotton | About 4-6 month | 1 pc |
2 | 20’’ Granular activated carbon | About 4-6 month | 1 pc |
3 | 20’’ Refined activated carbon | About 4-6 month | 1 pc |
4 | 400 GPD RO membrane | About 1-2 years | 1 pc |
5 | 12L ultra purified tank | About 25 tons | 1 pc |
10’’ ultra purification column | 2pcs | ||
6 | 0.2um terminal filter | —— | 1 pc |
7 | Imported 5000 Dalton UF heat source column | -- -- | 1 pc |
8 | Dual wavelength (185 & 254 nm) UV lamp (import) | About 9000 hours | 1 pc |
