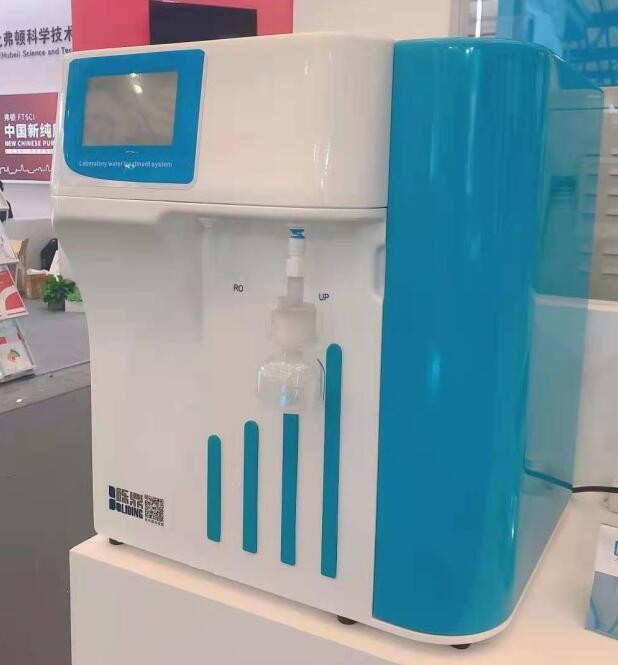

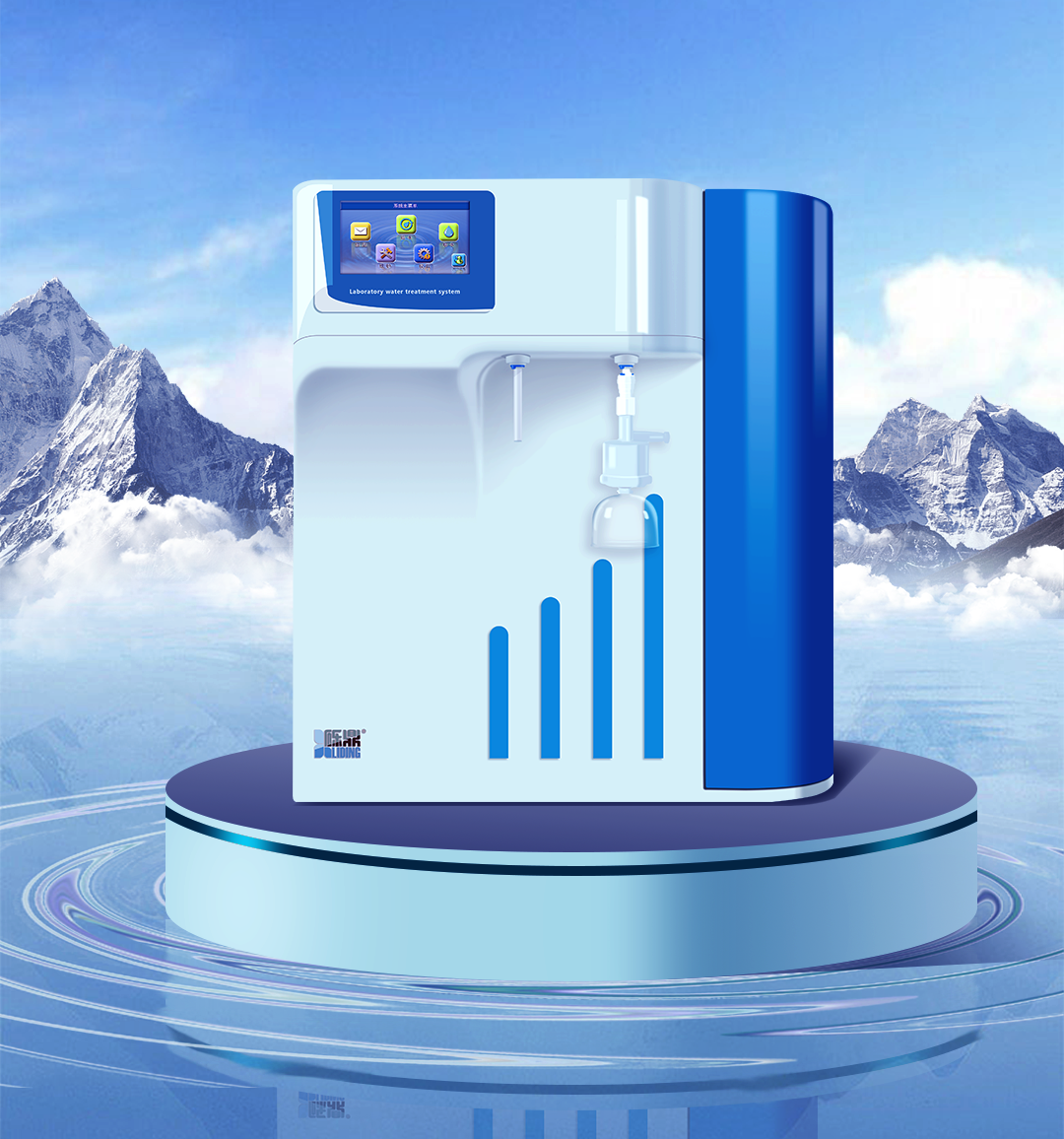

LAB-EDI-Q series

Product feature

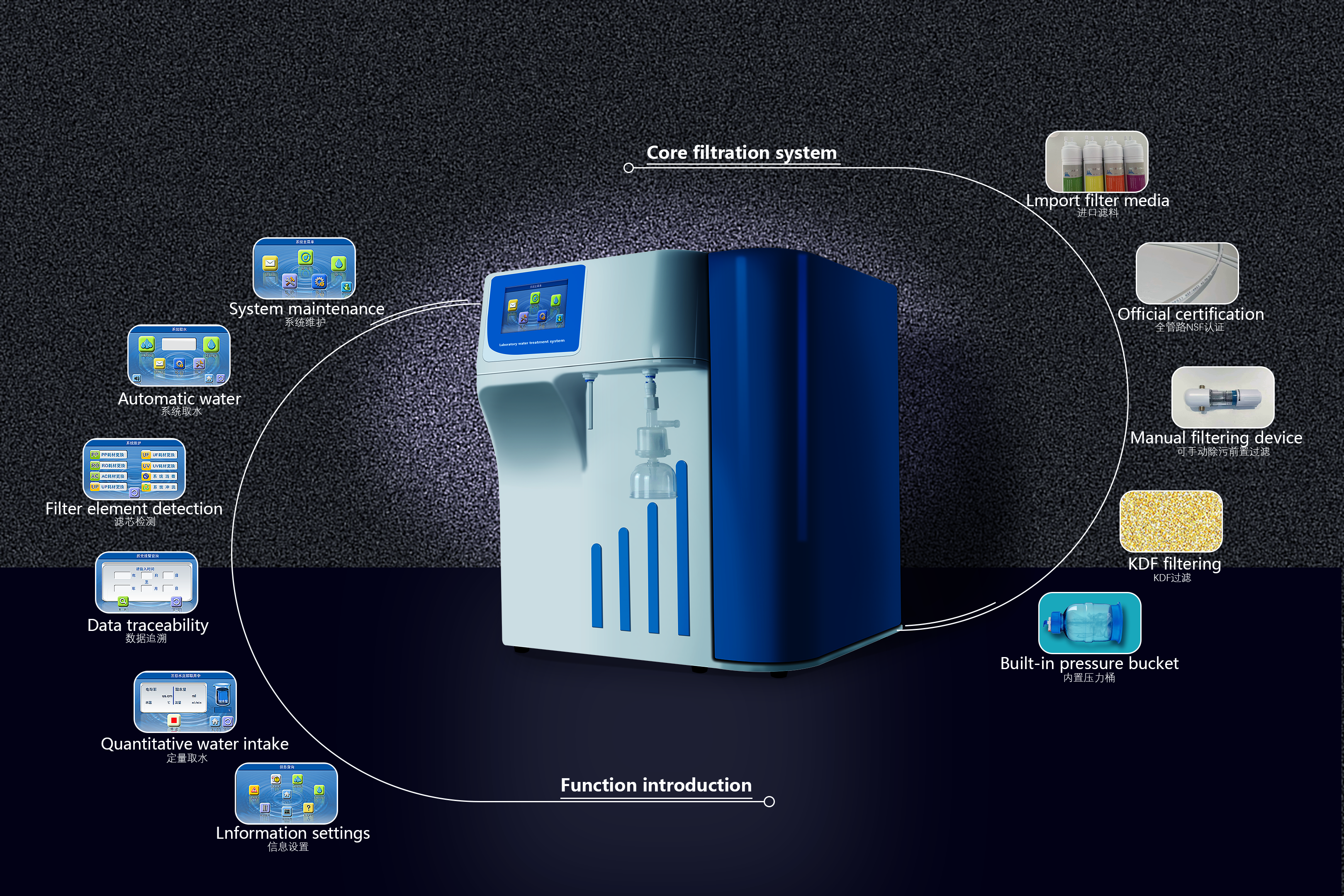

Ø Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.

Ø Built-in filter, with 10 micron 316L stainless steel precision filter screen to remove fine impurities instead of PP cotton filter; manual drain valve, automatic cleaning at any time, soft scraping design for more thorough drainage, transparent shell make filtration effect visual.

Ø The long-acting KDF device adopts the original imported filter material . It removes residual chlorine, heavy metals, and inhibits the growth of fungi at the front of water purification. It has a long service life, better protects the post-purification system, and extends lifetime of ultra-purification column

Ø Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.

Ø Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.

Ø The pipeline adopts a quick-plug interface, the pipe joint passes NSF certification, dual-wavelength UV lamps, effectively sterilizes and reduces TOC, and the original imported 5000D ultra filtration module effectively removes pyrogen.

Ø Type U Korean quick-insert filters, used imported filtering materials

Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

Ø Perfect managing functions of DI &UP water making, circulation system and sterilization.

Ø Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

Ø The machine is equipped with pure water transfer pump to ensure the flow rate of water Ø ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, door is open at the side

Ø Backlight LCD display,dual waterway online monitoring, which can simultaneously display DI conductivity value,UP resistance value and equipment operating status indication.

Ø Menu-type operation, parameters can be set and modified, operating status display and indication light indicate to promptly reflect machine operating status such as high-pressure shutdown, low-pressure alarm, water full shutdown, etc.

Ø Alarming for water quality exceeding, automatic filters replacement reminding, water intake time can be set. Take water by touched key, Automatic indication light indicate DI and UP water intake.

Ø Equipped with a portable test pen, which can test TDS content, conductance and water temperature anytime, anywhere

Ø With RS-232C communication interface output, it can be connected with intelligent instruments with RS-232C interface to realize the transmission of measurement data or print records

Ø Can be equipped with ultra-pure water internal circulation system which keep water quality at the highest level.

Ø Using EDI module, Ensure the purity of water and maintain the life of consumables.

Ø 40 L water level tank to store EDI water
