Welcome~Shanghai Leading Water Treatment Equipment Co.,Ltd

STAR-VF-15

RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/ml,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ul

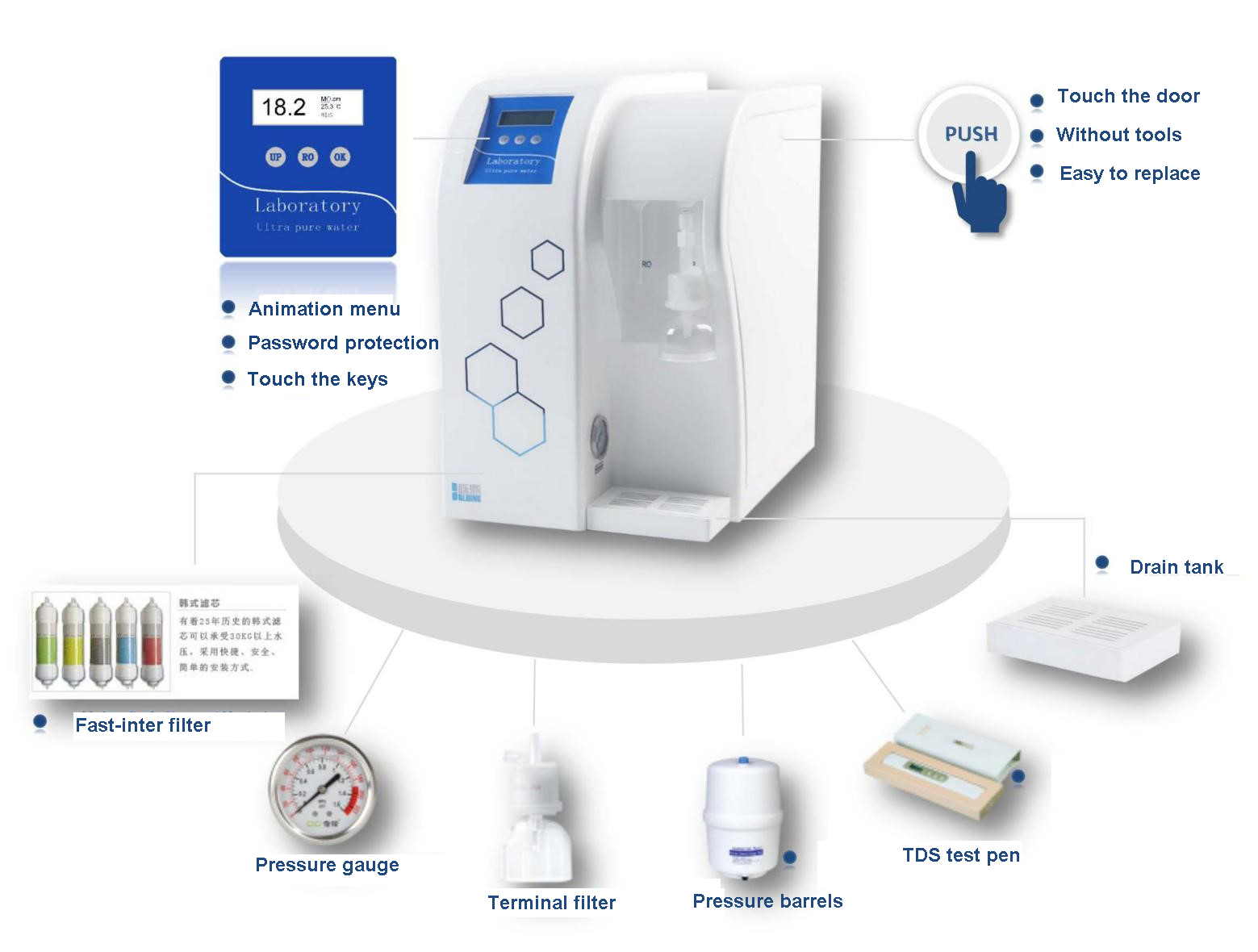

Product Features

Ø The case adopts ABS plastic spraying process; the appearance adopts curve design to be more beautiful and generous with removable drain tank

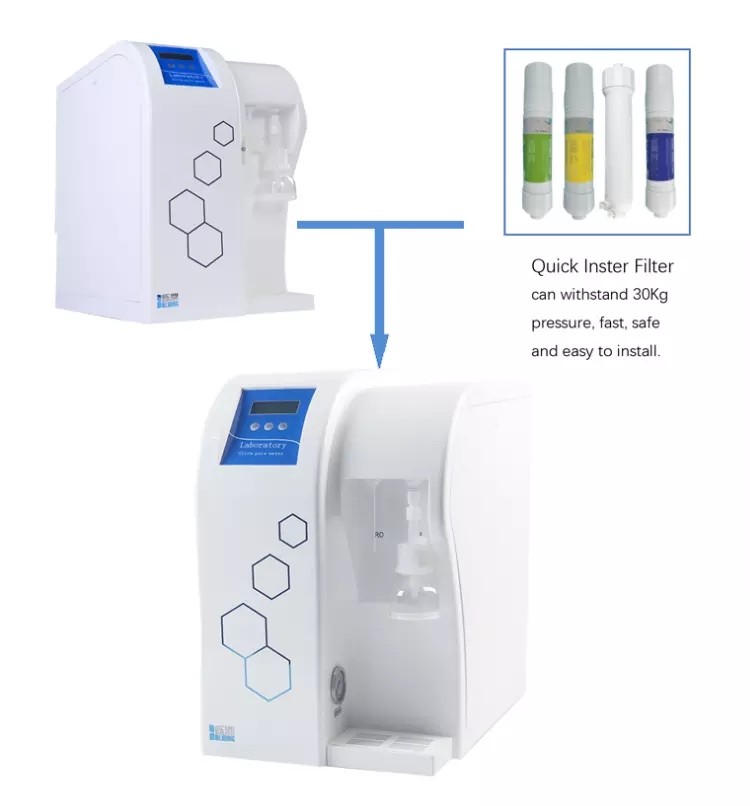

Ø All Korean-style quick-inserted filter columns in the entire system are built into the chassis; easy maintenance and replacement;

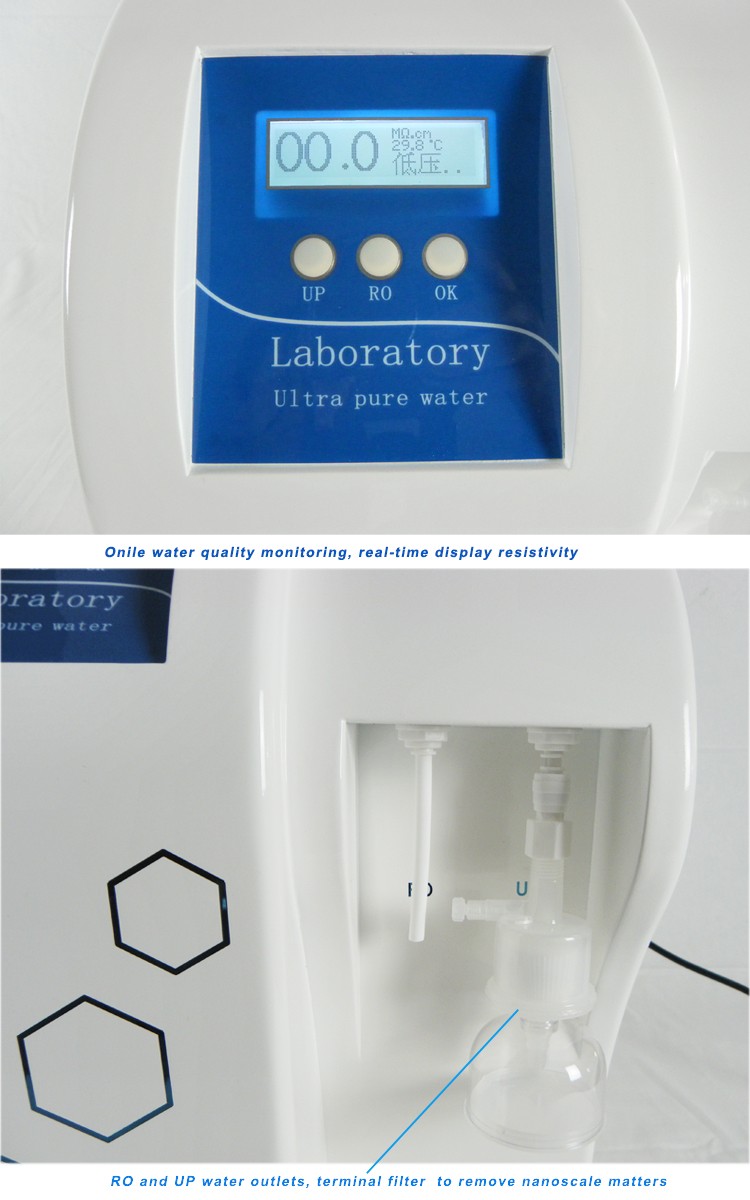

Ø Water quality online monitoring system, which can measure the water quality of the produced water immediately;

Ø Equipped with a portable TDS pen, which can test TDS content, conductance and water temperature anytime and anywhere;

Ø Touch the keys, two water quality, ready to use;

Ø Touch the door to open the door design, the replacement of the filter element is simple and fast, the entire process does not require any tools, and the filter element replacement is easily completed;

Ø Support WIFI expansion interface, provide mobile APP remote monitoring function, improve user experience; (optional)

Ø Chinese LCD display and user-friendly operation interface allow you to fully monitor the working status and real-time data of the controller;

Ø Four user passwords and factory password protection;

Ø Perfect RO pure water and ultra pure water to make water, system water extraction, system flushing and other functions.

Ø Perfect raw water pressure display, no water protection, high pressure water full protection functions and fault alarm function.

Ø Complete consumable life management function, support the unique ID identification function of consumables, and eliminate counterfeit and inferior non-original consumables. (Optional)

Ø It adopts low-voltage 24VDC as the main power supply, which complies with the safety regulations and meets the use in humid environments without causing harm to people.

Application

Suitable for molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicology research, drug development, medical testing

Product parameter

Inlet water source

Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C

Water flow speed

1.5-2L/min

Water making speed

15 L/H

2 water outlets

RO water and UP water

RO water quality

Desalination rate as high as 95-99% (with new RO membrane)

UP water quality

Resistivity 18.25MΩ.cm@25°C, TOC: <3ppb, particles (>0.22um)<1/ml, microorganism<1cfu/mlpyrogen<0.001EU/ml, RNases0.01ng/ml, DNases3Pg/ul

Power Source

220V/50Hz;  48-72W

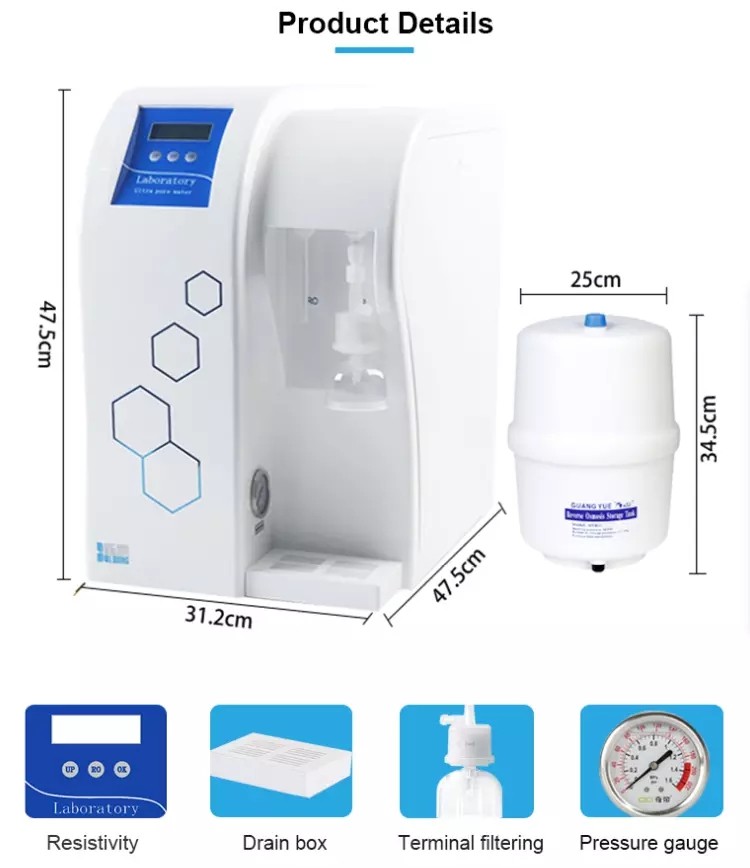

Dimensions(mm)

L x W x H:31.2 x 47.5 x 47.5cm

Standard configuration:

Main unit (including 1 set of consumable filters) +12L pressure tank + accessory package

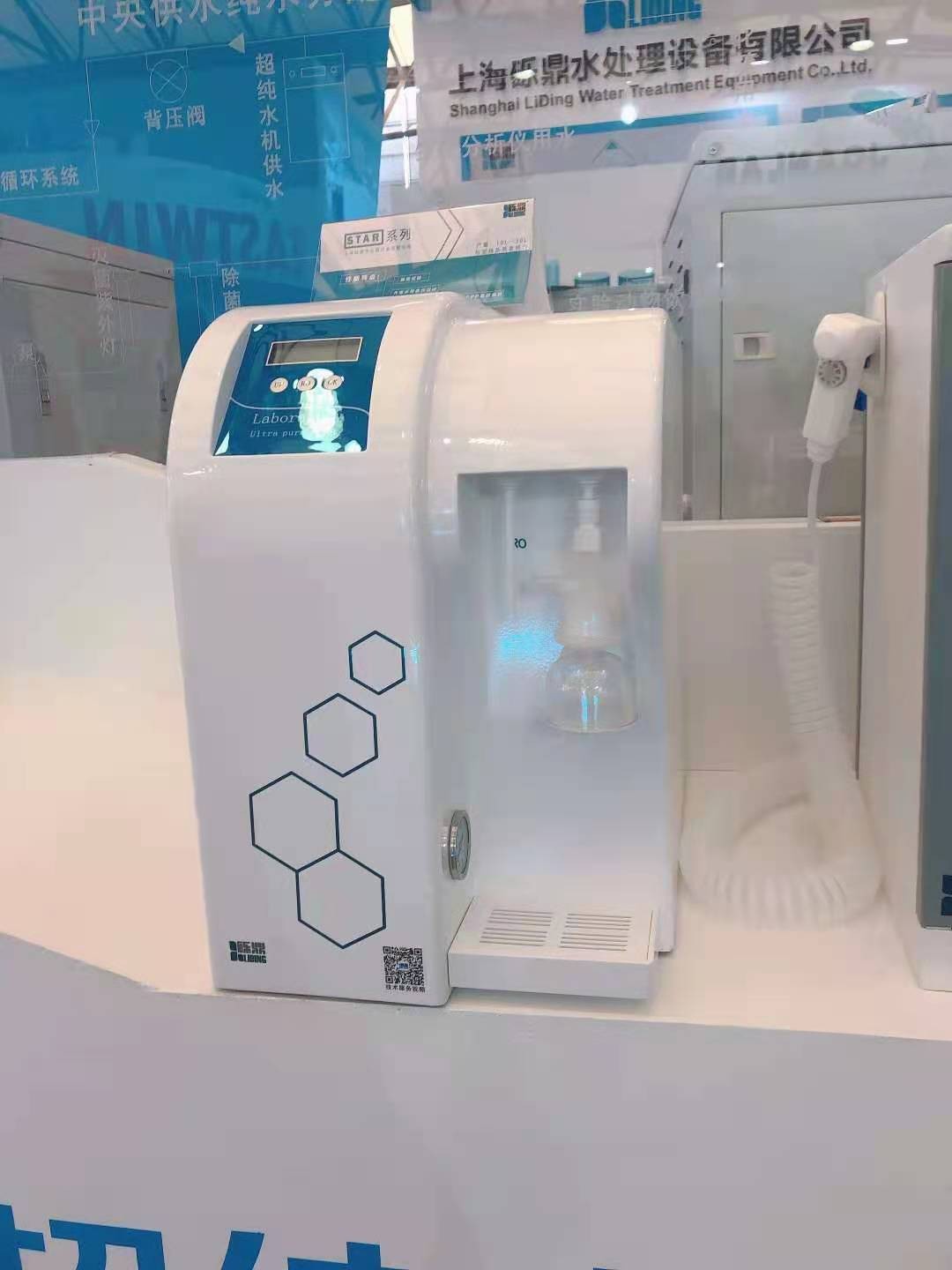

machine picture

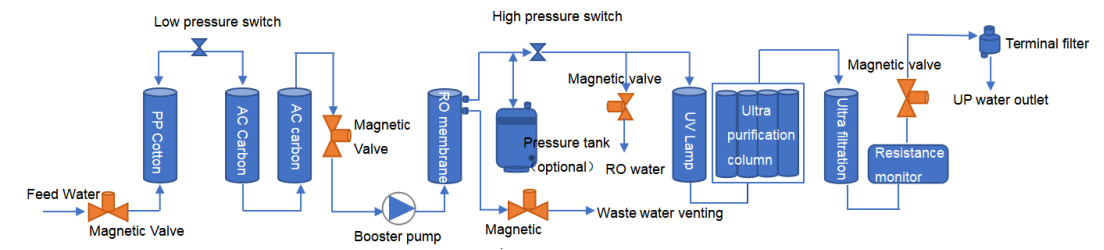

Process


Product consumables list

No

15 LPH Filter element

Replace cycle

Qty

1

11" PP filter

About 4-6 month

1 pc

2

11" activated carbon filter

About 4-6 month

2 pcs

3

100 GPD RO membrane

About 1-2 years

1 pc

4

11" ultra-purification column (imported resin)

About 1000 liter

4 pcs

5

0.2 μm PES terminal filter

About 2-3 years

1 pc

6

Imported 5000 Dalton UF heat source column

——

1 pc

7

Dual wavelength (185 & 254 nm) UV lamp (import)

About9000 hours

1 pc
