LD-R-RO-15

Desalination rate as high as 95-99% , Conductivity ≤1-5μS/cm(type III water)

Features

Ø Applicable to various water quality, the case is with powder coating.

Ø The filter element adopts open mold injection technology and inside the machine

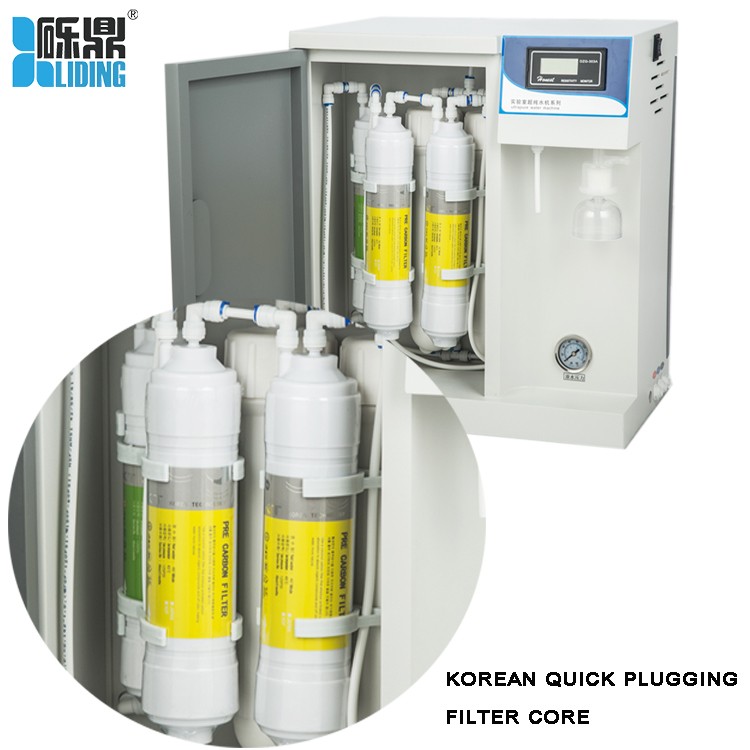

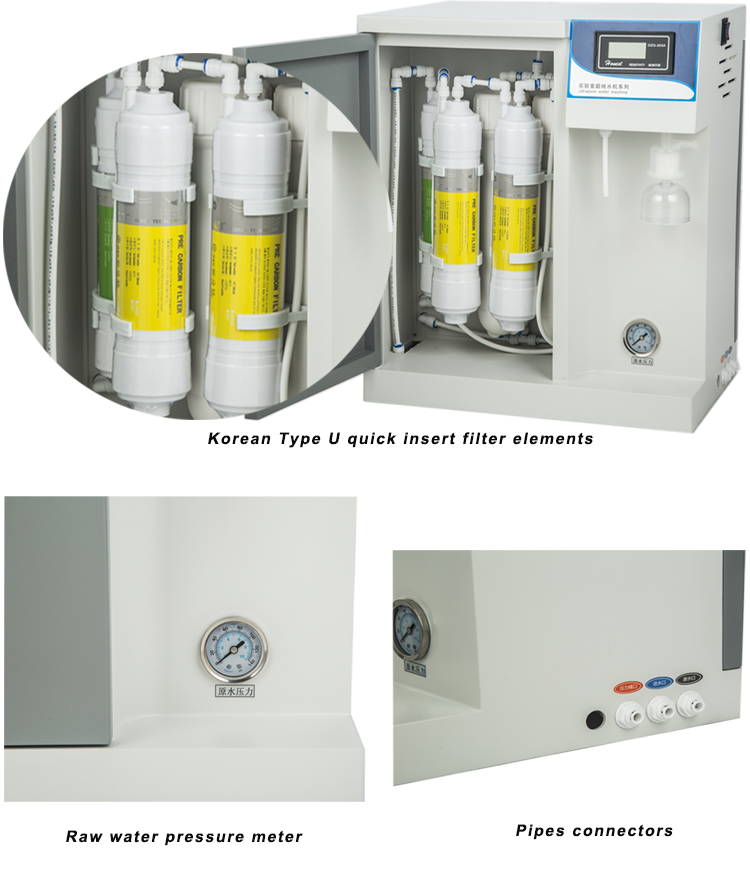

Ø Korean quick-insert filter column is easy to replace and maintain.

Ø The electrical appliance and waterways are completely separated to avoid circuit

failure caused by moisture and water leakage.

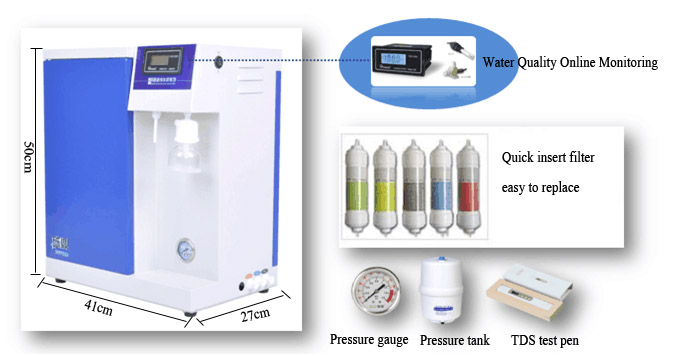

Ø Online water quality monitoring system, immediately measure the output water quality.

Ø Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stop, storage tank automatically fill water, automatic stopping when water is full.

Ø NSF certified pipeline has function of upgrading water quality and quantity.

Ø Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.

Ø Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.

Ø Open door at front and back, this make filters replacement easy&convenient, the replacement can be easily completed without using any tools. Double water intakes: pure water and deionized water



Application

Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt


Filter function

² First stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.

² Second stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.

² Third stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.

² The fourth stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.


Parameter

Feed water: urban tap water: TDS<200ppm, 5-45°C, 1.0-3.5Kg/cm2

Output: 15L/H

Inorganic ion rejection: >96%

Soluble organic matter rejection: >99% (molecular weight >100)

Particulate matter rejection rate: >99%

Microbial retention rate: >99%

RO water quality: Desalination rate as high as 95-99% , Conductivity ≤1-5μS/cm(type III water)

Power supply 220V 50Hz, 72-240W

Standard configuration: Machine ( with 1 set consumable filter inside)  + accessory package


Product consumables list

No

Filter element

Replace cycle

Quantity

Remark

1

11’’ PP cotton

About 3-6 month

1 pc


2

11’’ activated carbon

About 3-6 month

2 pcs

3

100 GPD RO membrane

About 1-2 years

2 pcs

4

100 GPD low pressure RO membrane

About 1-2 years

1 pc
