LAB-WP-VF-15

RO pure water: desalination rate as high as 95-99% , Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/ml,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ul


Product Features

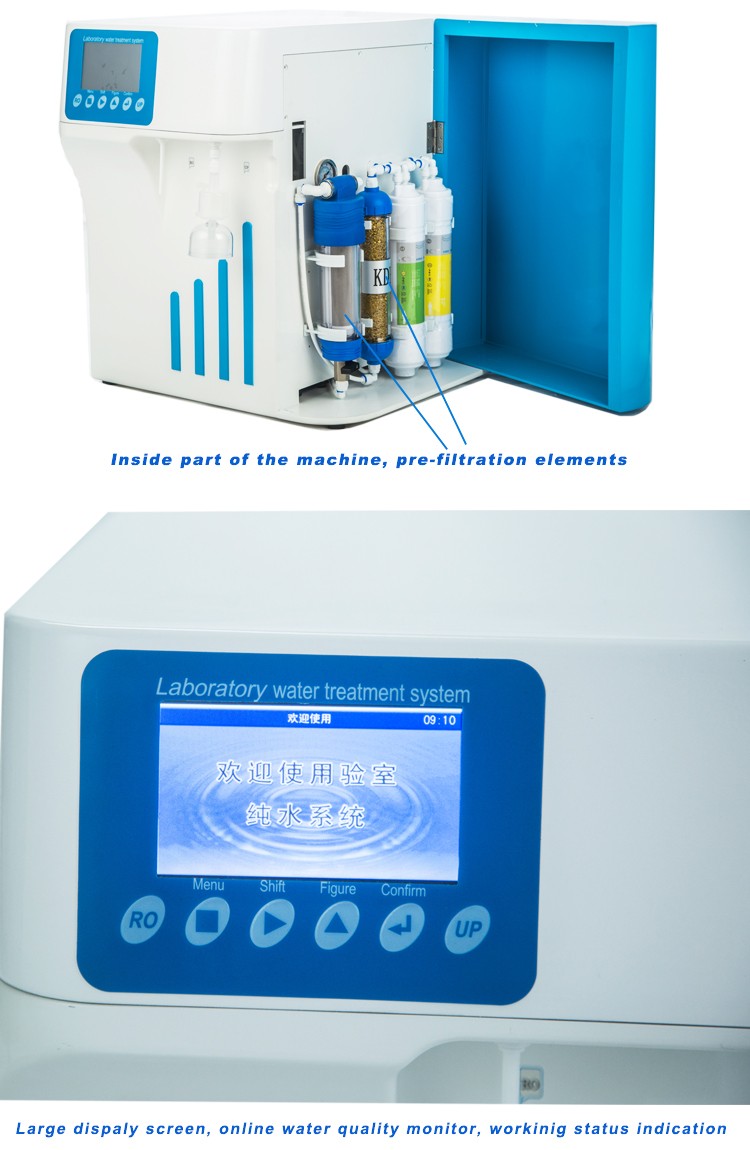

Ø Colored touched screen, humanized operation interface make users completely monitor controllers working status and real-time data.

Ø ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.

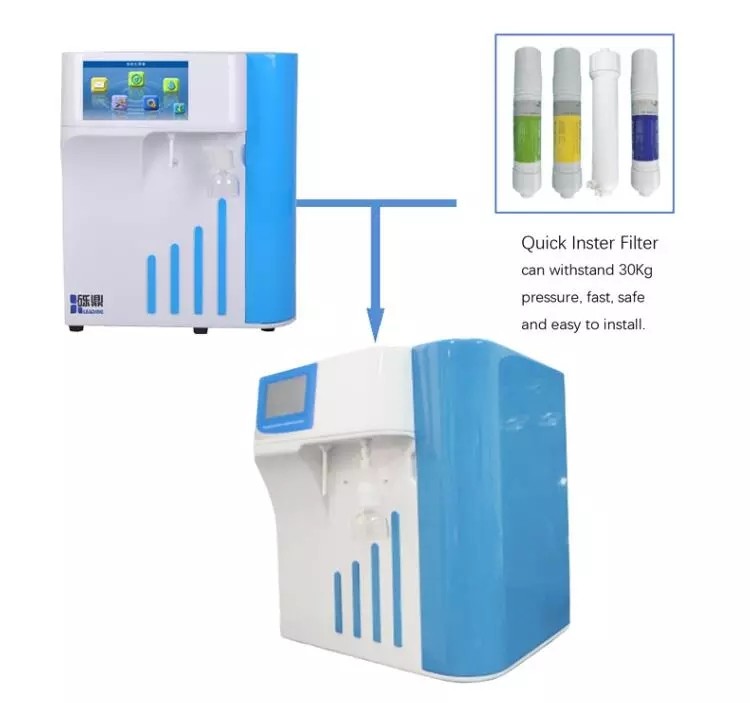

Ø Type U Korean quick-insert filters, used imported filtering materials.

Ø Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.

Ø Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filters, this avoid frequent filter replacement.

Ø Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.

Ø Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

Ø Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.

Ø Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.

Ø Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.

Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.

Ø Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)


Application

Molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicology research, drug development, medical testing


Product parameter

Inlet water source

Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C

Water flow speed

1.5-2L/min ( with pressure barrel)

Machine capacity

15 L/H

Output

Water quality

RO water: desalination rate as high as 95-99% (when using new RO membrane)

UP water: resistivity 18.25MΩ.cm@25°C (higher than laboratory water standard)

TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml,

pyrogen<0.001EU/ml, RNases0.01ng/ml, DNases3Pg/ul

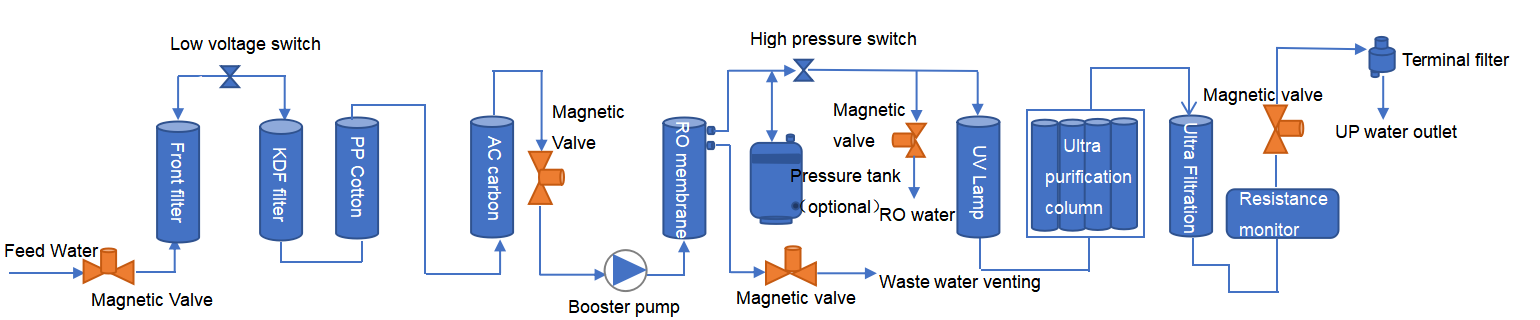

Process


Filter function

Front filter: 10 micron mesh 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.

KDF filter: Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.

PP: PP cotton filter, remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

AC: Granular activated carbon filter: remove color, odor, residual chlorine and heavy metals

RO: Reverse osmosis membrane: filter out <1nm pollutants, ions, particles

UV: UV germicidal lamp: sterilization device, decomposition and photo oxidation OC, lower TOC

UP: Ultra-purification column: ion exchange resin bed, H+ and OH- ion removal

UF: Ultra filtration membrane: remove pyrogen,RNase, DNase

TF: 0.2μm terminal filter, final removal for < 0.2μm bacteria

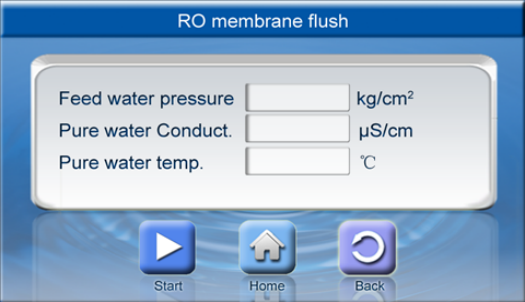

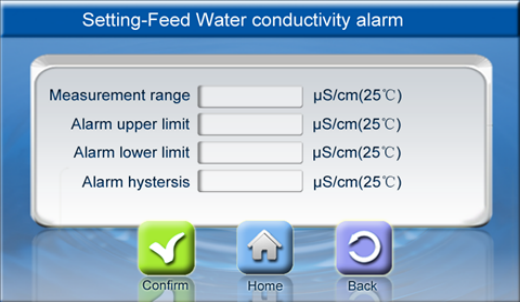

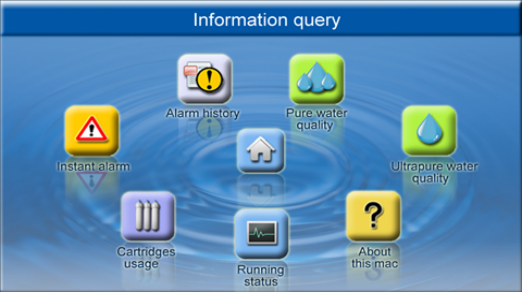

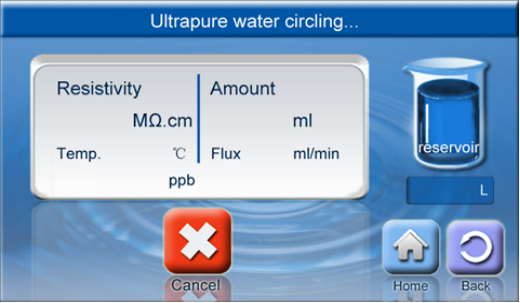

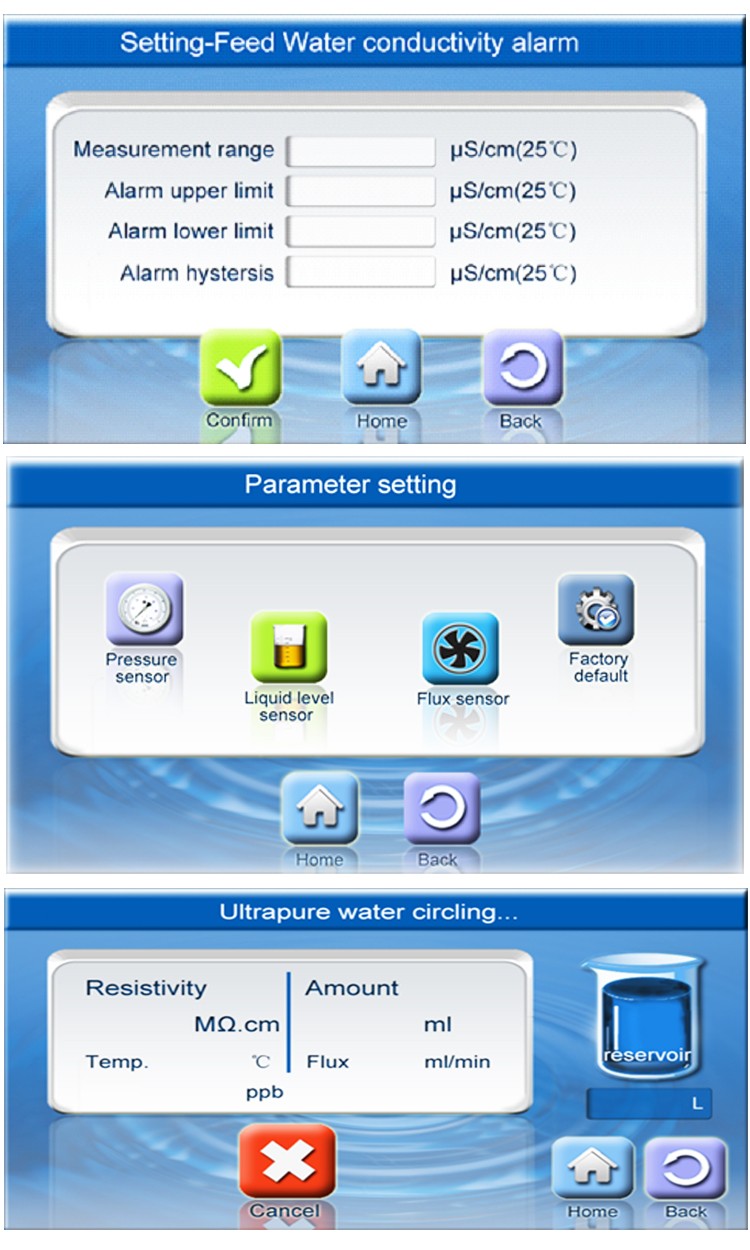

Operation screen display


Product consumables list

No

Filter element

Replace cycle

Quantity

1

KDF composite filter

About 1 year

1 pc

2

11" PP filter

About 4-6 month

1 pc

3

11" activated carbon filter

About 4-6 month

1 pc

4

100 GPD RO membrane

About 1-2 years

1 pc

5

11" ultra-purification column (imported resin)

About 1000 liter

4 pcs

6

0.2 μm imported PES terminal filter

About 2-3 years

1 pc

7

Dual wavelength (185 & 254 nm) UV lamp tube (import)

About 9000 hours

1 pc

8

Imported PES 5000 Dalton UF heat source column

/

1 pc
