LD-WFUP Synthesizing

RO pure water:
desalination rate as high as 95-99% ,
Conductivity ≤10μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/m,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ml/ul

Product Features

Ø Applicable to various water quality, the case is with powder coating.

Ø The filter element adopts open mold injection technology and inside the machine

Ø Korean quick-insert filter column is easy to replace and maintain.

Ø The electrical appliance and waterways are completely separated to avoid circuit failure caused by moisture and water leakage.

Ø Online water quality monitoring system, immediately measure the output water quality.

Ø Automatic RO membrane anti-scaling flushing program, automatic stop when tap water break, automatic water breaking when machine stopstorage tank automatically fill water, automatic stopping when water is full.

Ø NSF certified pipeline has function of upgrading water quality and quantity.

Ø Equipped with a portable TDS pen, you can test TDS content, conductance, water temperature anytime, anywhere.

Ø Double electric water intakes, two kinds water quality, ready to use. Pressure online monitoring.

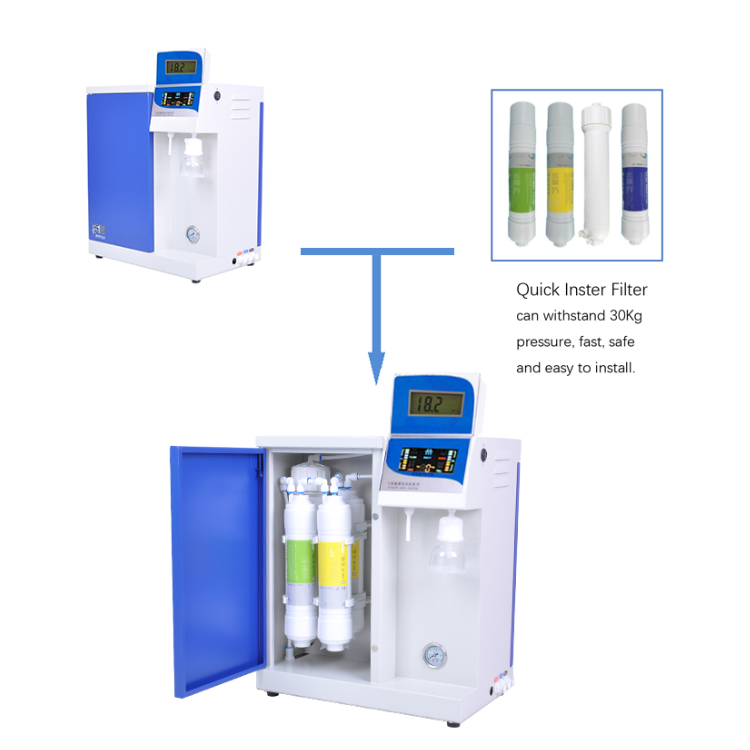

Ø Open door at front and backthis make filters replacement easy&convenientthe replacement can be easily completed without using any tools.

Ø Double water intakesRO water and UP water

Application

Suitable for molecular biology, life sciences, genetic research, cell culture, amino acid analysis, protein purification, toxicology research, drug development, medical testing

Product parameter

Inlet water source

Urban tap water, water pressure: 0.15-0.5MPa, water temperature 5-40 Degrees C

Flow rate

1.5-2L/min ( with pressure barrel)

Water making speed

10L/H

Output water quality

1.RO pure water: desalination rate as high as 95-99%

2. UP water: resistivity 18.25MΩ.cm@25°C, TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/mpyrogen<0.001EU/ml, RNases0.01ng/ml, DNases3Pg/ul

Power Supply

220V/50Hz; 30-40W

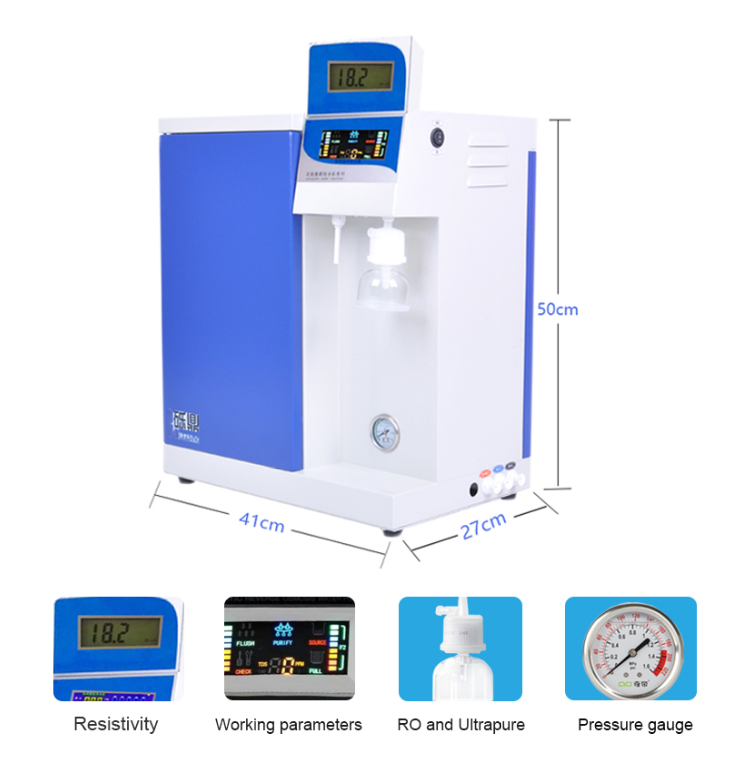

Dimensions

L x W x H: 41 x 27 x 50cm

Standard configuration:

Machine (with 1 set of purification filters) and 12L pressure barrel+ end point filter + accessory package

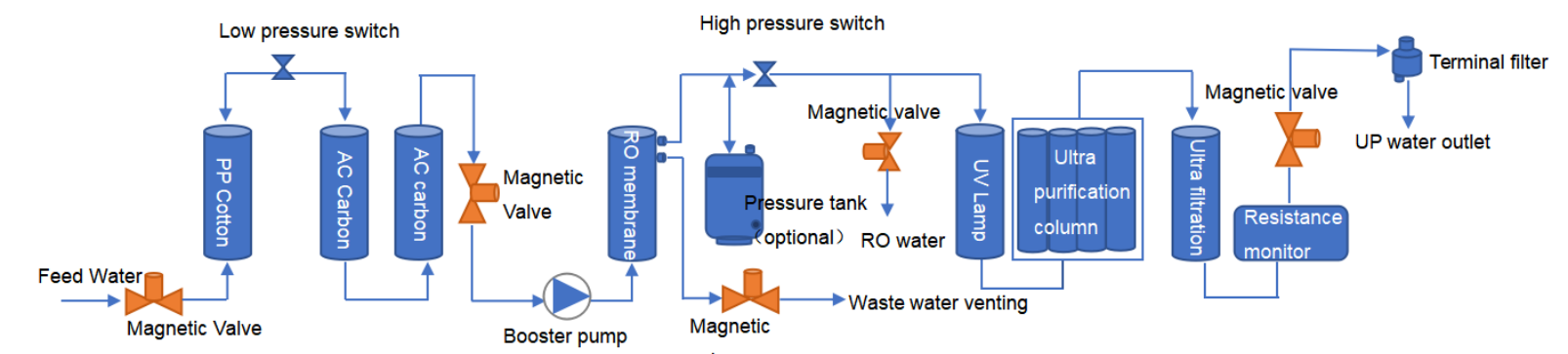

Process


Product consumables list

No

10 LPH Filter element

Replace cycle

Quantity

1

11" PP filter

About 4-6 month

1 pc

2

11" activated carbon filter

About 4-6 month

 2 pcs

3

75 GPD RO membrane

About 1-2 years

   1 pc

4

11" ultra-purification column (imported resin)

About 1000 liter

 4 pcs

5

0.2 μm imported PES terminal filter

About 2-3 years

1 pc

6

Dual wavelength (185 & 254 nm) UV lamp (import)

About9000 hours

1 pc

7

Imported 5000 Dalton UF heat source column

——

1 pc


No

20 LPH Filter element

Replace cycle

Quantity

1

11" PP filter

About 4-6 month

1 pc

2

11" activated carbon filter

About 4-6 month

 2 pcs

3

75 GPD RO membrane

About 1-2 years

   2 pcs

4

11" ultra-purification column (imported resin)

About 1000 liter

 4 pcs

5

0.2 μm imported PES terminal filter

About 2-3 years

1 pc

6

Dual wavelength (185 & 254 nm) UV lamp (import)

About9000 hours

1 pc

7

Imported 5000 Dalton UF heat source column

——

1 pc


No

30 LPH Filter element

Replace cycle

Quantity

1

11" PP filter

About 4-6 month

1 pc

2

11" activated carbon filter

About 4-6 month

 2 pcs

3

75 GPD RO membrane

About 1-2 years

   2 pcs

4

11" ultra-purification column (imported resin)

About 1000 liter

 4 pcs

5

0.2 μm imported PES terminal filter

About 2-3 years

1 pc

6

Dual wavelength (185 & 254 nm) UV lamp (import)

About9000 hours

1 pc

7

Imported 5000 Dalton UF heat source column

——

1 pc
