MT-DI-UP Synthesizing

Product Features

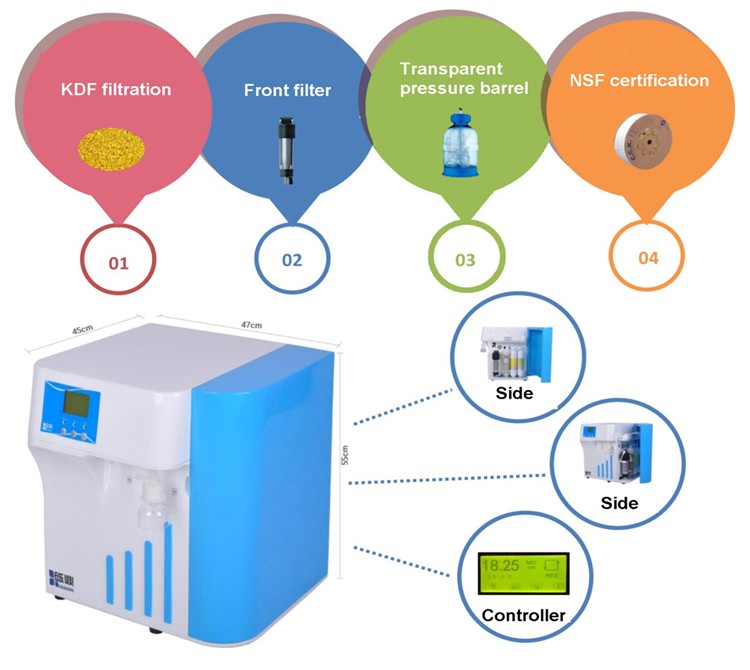

Ø ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.

Ø Type U Korean quick-insert filters, used imported filtering materials.

Ø Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.

Ø Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.

Ø Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.

Ø Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

Product parameter

Process

Filter function

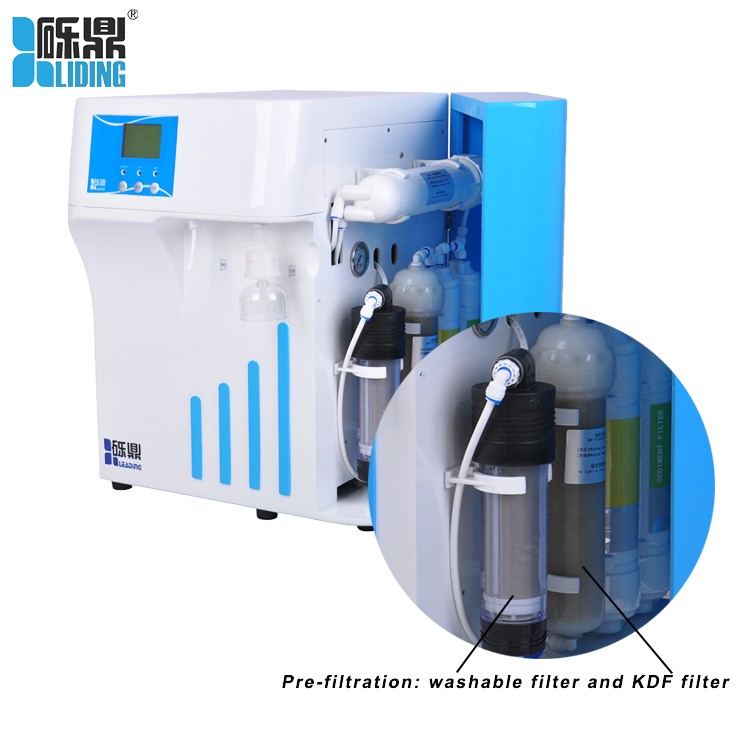

Front filter: 10 micron mesh 316 stainless steel washable filter, remove minor impurities,extend PP cotton lifetime.

KDF filter: Remove residual chlorine,heavy metals, retrain fungi breed, lifetime is very long, can protect post-positive filters.

PP: PP cotton filter, remove impurities (greater than 5 micron) such as suspended solid, rust, sludge, colloid, etc.

AC: Granular activated carbon filter: remove color, odor, residual chlorine and heavy metals

RO: Reverse osmosis membrane: filter out <1nm pollutants, ions, particles

UV: UV germicidal lamp: sterilization device, decomposition and photo oxidation OC, lower TOC

DI: deionized-purification column: ion exchange resin bed, H⁺ and OH^- ion removal

UP: Ultra-purification column: ion exchange resin bed, H⁺ and OH^- ion removal

UF: Ultra filtration membrane: remove pyrogen,RNase, DNase

TF: 0.2μm terminal filter, final removal for < 0.2μm bacteria
