LAB-R-DU-VF-10

DI water:
Conductivity ≤0.1μS/cm
Ultrapure water:
resistivity 18.25MΩ.cm@25°C,
TOC: <3 ppb,
particles (>0.22 um) <1/ml,
microorganism <1 cfu/m,
pyrogen<0.001EU/ml,
RNases≤0.01ng/ml,
DNases≤3Pg/ml/ul

Specification

Model Number	Capacity	Delivery time	Warranty	Payment term	Configuration
LAB-R-DU-VF-10	10L/H	7-10 working days after payment	1 year	T/T 100% in advance

Product feature

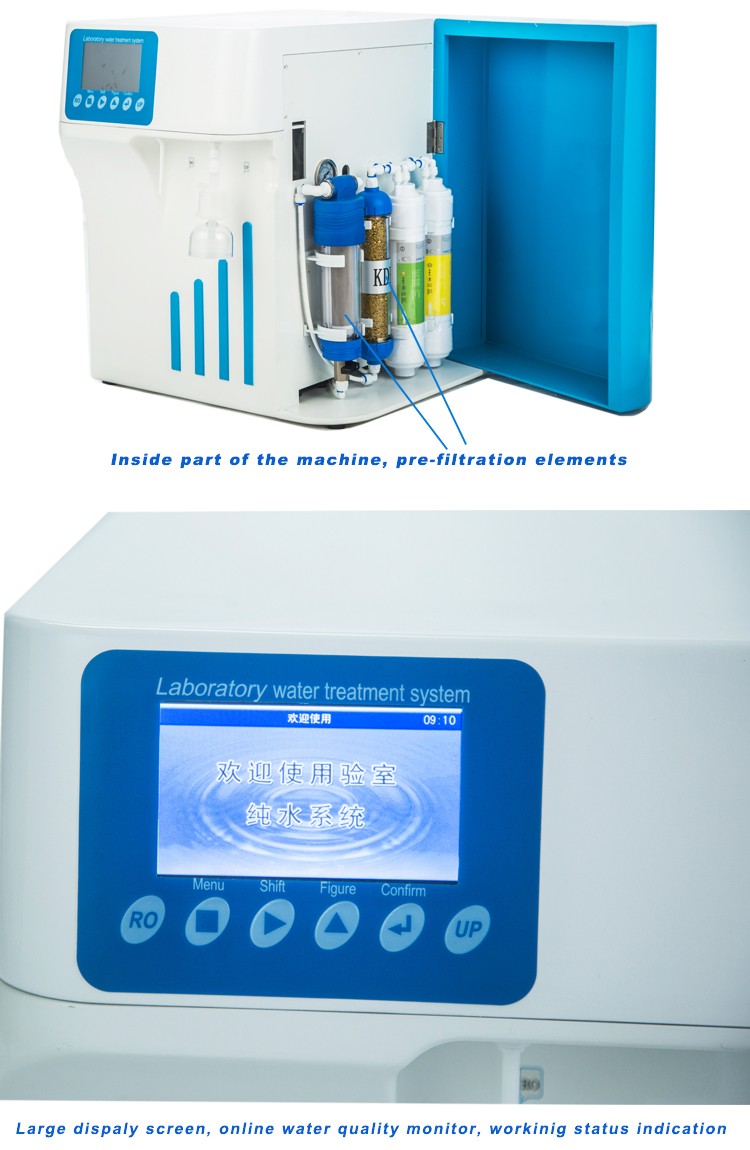

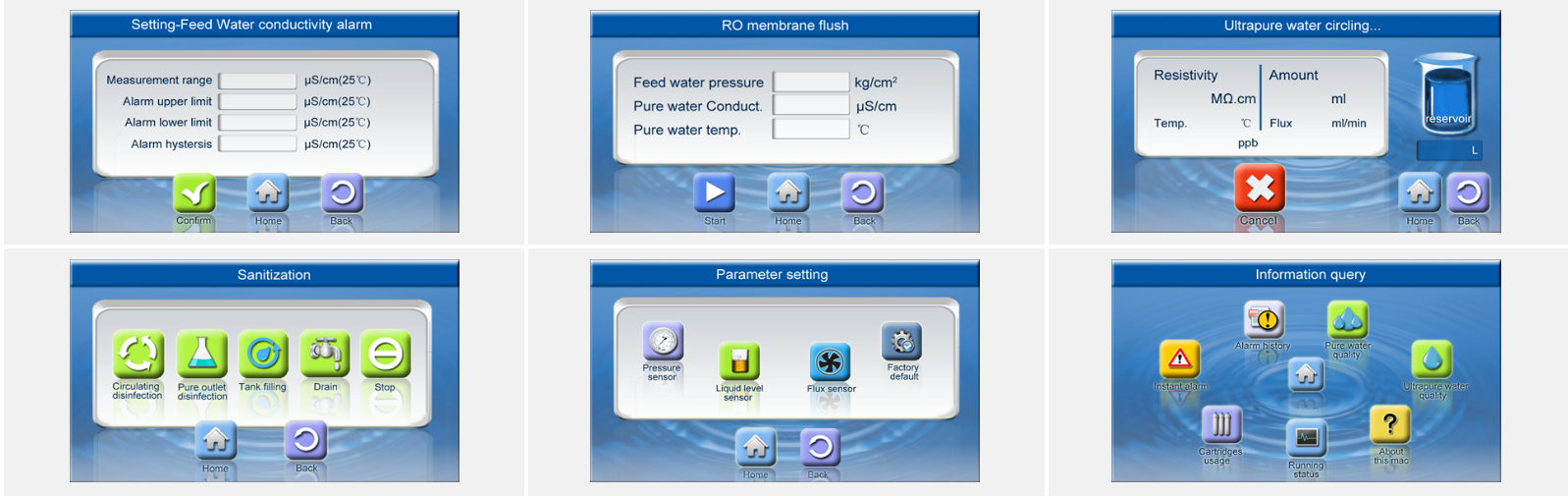

Ø Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.

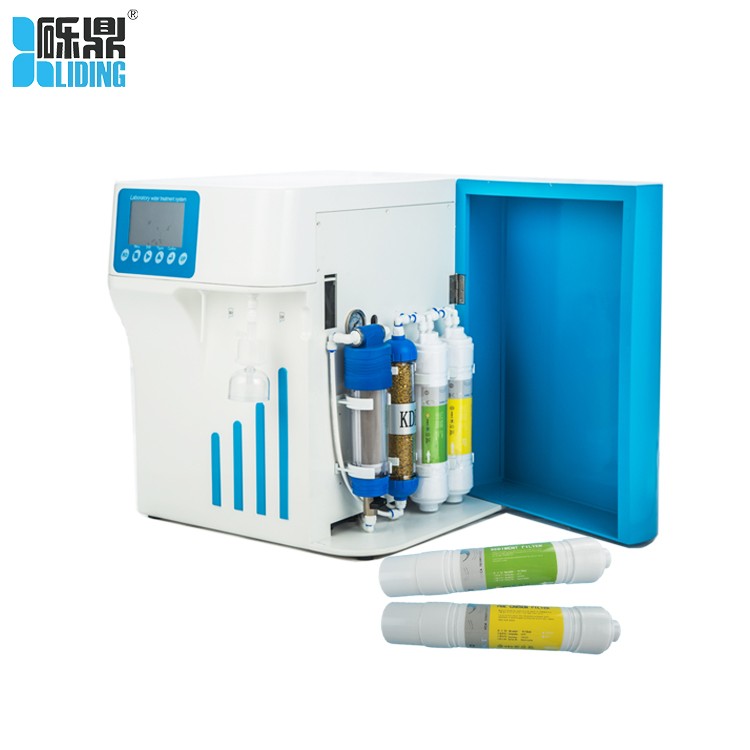

Ø ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.

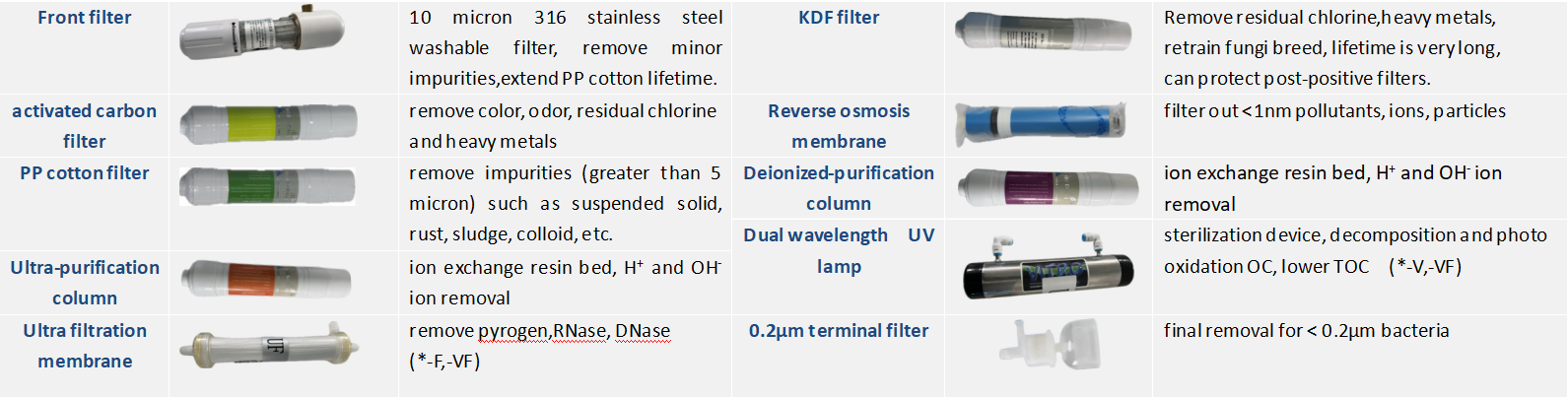

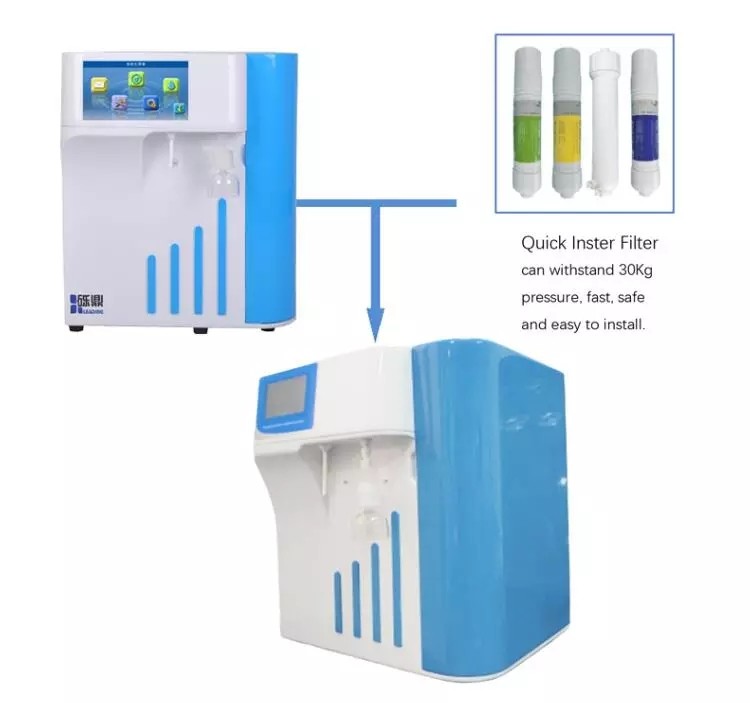

Ø Type U Korean quick-insert filters, used imported filtering materials.

Ø Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.

Ø Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.

Ø Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.

Ø Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.

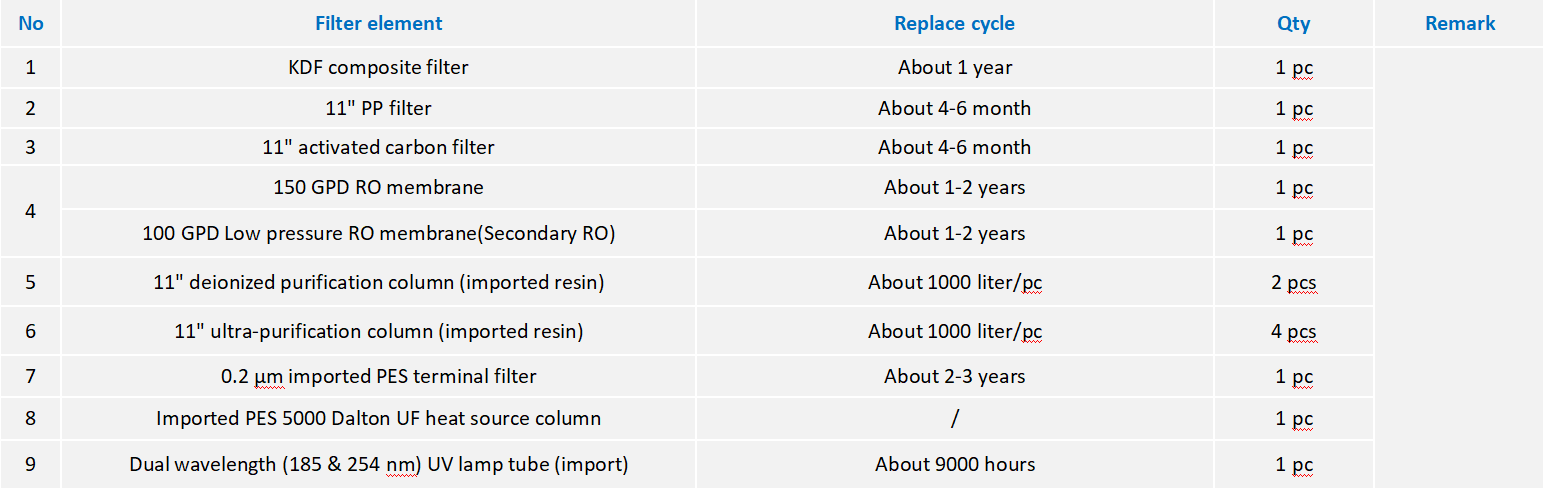

Ø Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.

Ø Perfect managing functions of RO&UP water making, circulation system and sterilization.

Ø Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.

Ø Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.

Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.

Ø Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)

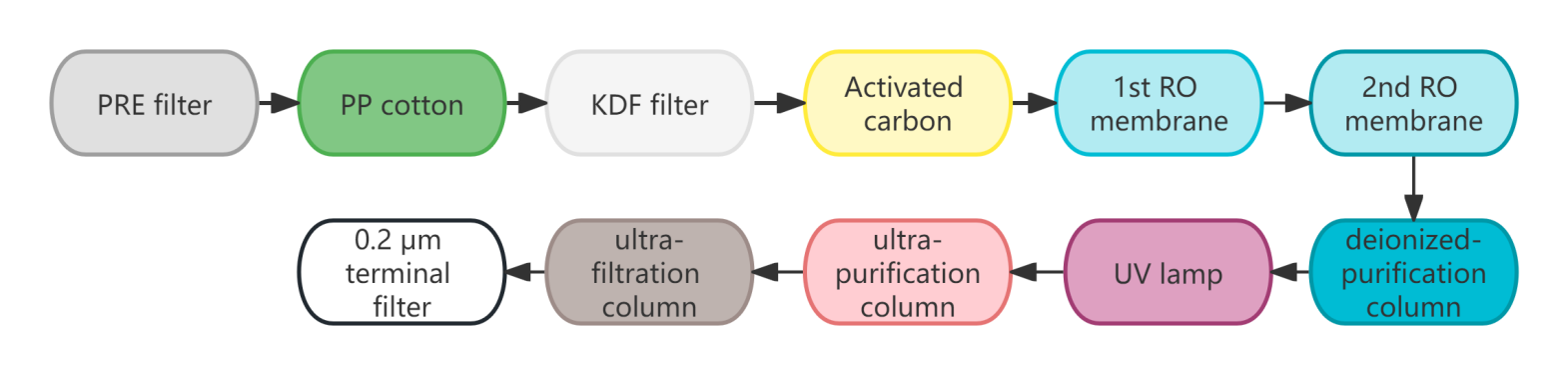

Ø This machine adopts double pump double membrane process, source water quality is poor water quality high hardness area, ensure stable water quality, consumables service life is longer

Ø Overcome the traditional machine to the source water pressure requirements, the water flow machine can work normally

Parameter

Water rate	10 liter per hour
Production speed	1.5-2 L/min（with pressure barrel）
The water requirements	Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃,TDS<400ppm
RO water Parameter(ASTM TYPE III grade water)
Conductivity	1-5 us/cm
Application	Front system of ultra-pure water machine, buffer configuration, photosensitive film washing, water supply for stability experiment box, meteorological experiment equipment, hydrogen generator, battery adding liquid, electroplating and other instruments
DI water Parameter(ASTM TYPE II grade water)
Resistivity (25℃)	10-16 M Ω. cm @ 25 ℃
Conductivity	<0.1μS/cm
Total organic carbon (TOC) *	<30 ppb
Application	Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt spray test chamber.
UP water Parameter(ASTM TYPE I grade water)
Resistivity (25℃)	18.25 M Ω. cm @ 25 ℃
Heavy metal ion	< 0.01 ppb
Total organic carbon (TOC) *	<3 ppb
bacteria	< 1 cfu/ml (with terminal filter)
Particulate matter (> 0.1 microns)	<1/ml
Pyrogen (endotoxin)**	< 0.001 Eu/ml
RNases**	<1pg/ml
DNases**	<5pg/ml
Application	Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing
Electrical requirements	110-240V，50/60Hz; 120W
The system configuration	Host machine (including 1 set of purification column)+8 L built-in pressure water storage tank +TDS pen + accessory bag
